Voltera V-One
Incl. of all taxes • Free shipping
Voltera V-One
₹7,19,999
₹7,19,999
Build Hardware Faster

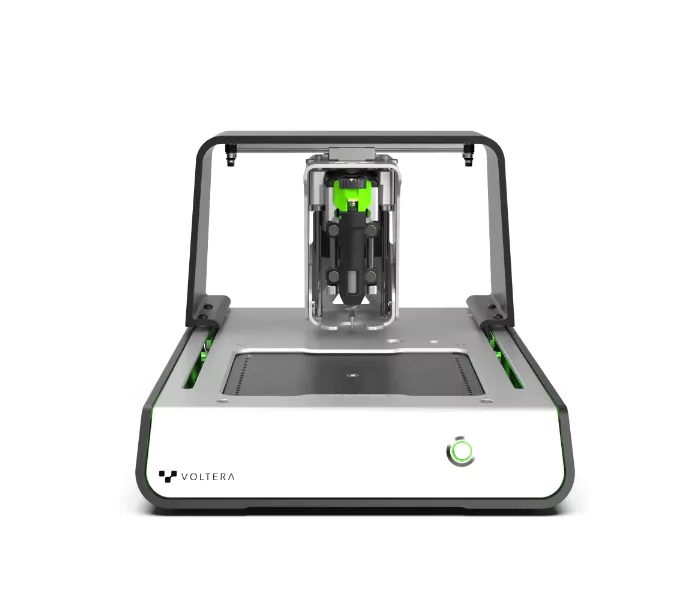

Prototype on your desktop with the Voltera V1 PCB Printer
The V1 prints double-sided PCBs, dispenses solder paste, and helps you explore new materials and substrates. From prototype to production faster than ever before.
Features Of Voltera V-One PCB Printer

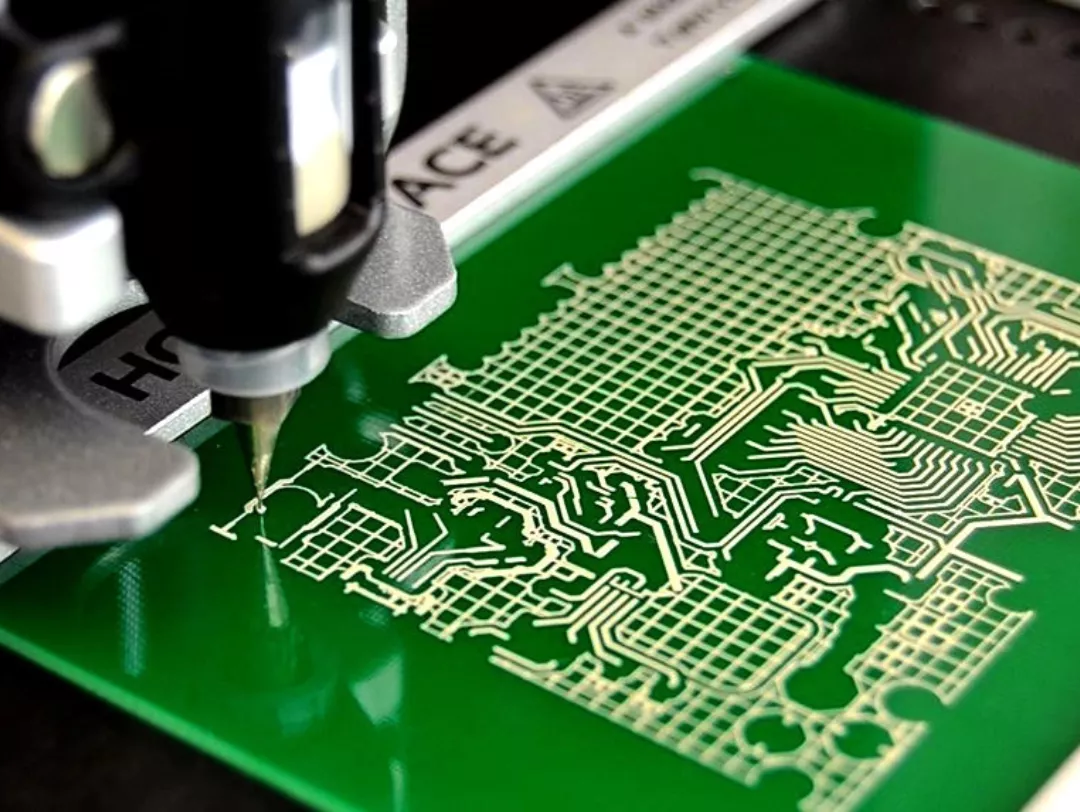

Print Your Own Circuit Boards
On your desktop and on your schedule, the Voltera V1 gets you from prototype to production faster than ever before. Create two-layer circuit boards on your desk. Load your Gerber files and watch the dispenser lay down silver-based conductive ink to print your circuit.

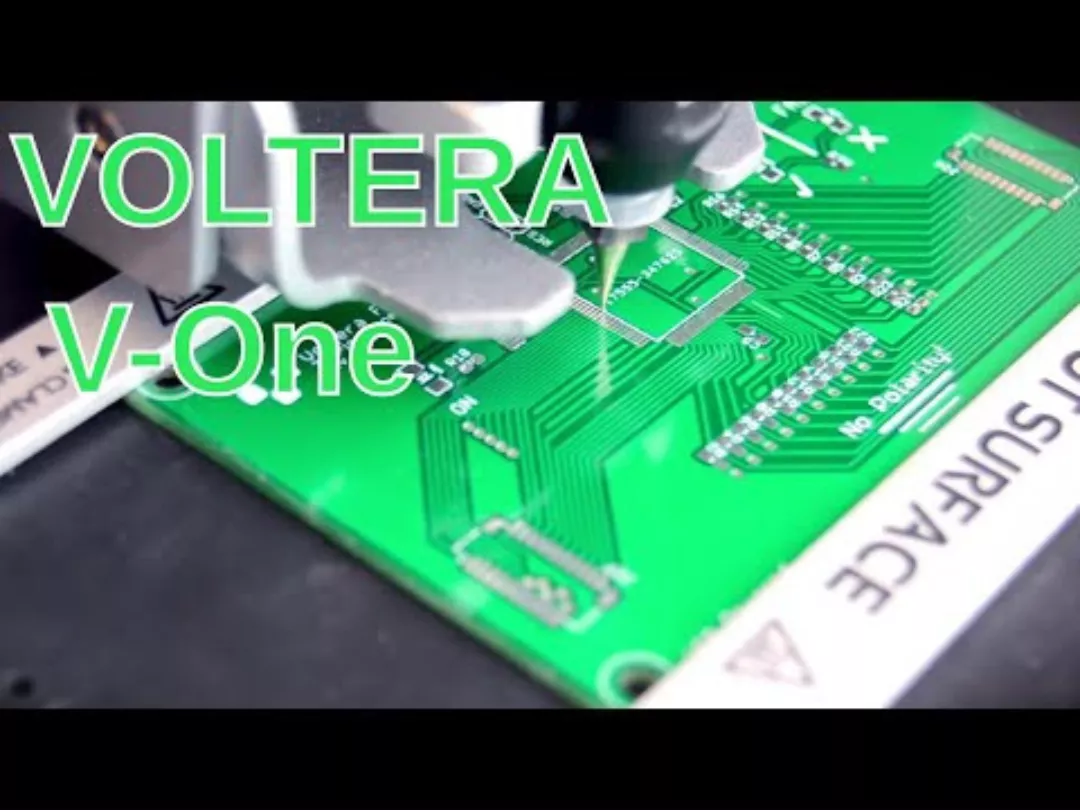

Skip the Soldering Iron
Focus on designing, not soldering. Whether your boards come from a factory or your desk, just mount them on the V1 and go. Say goodbye to stencils and cut your assembly time in half with quick-turn PCBA at your desk.

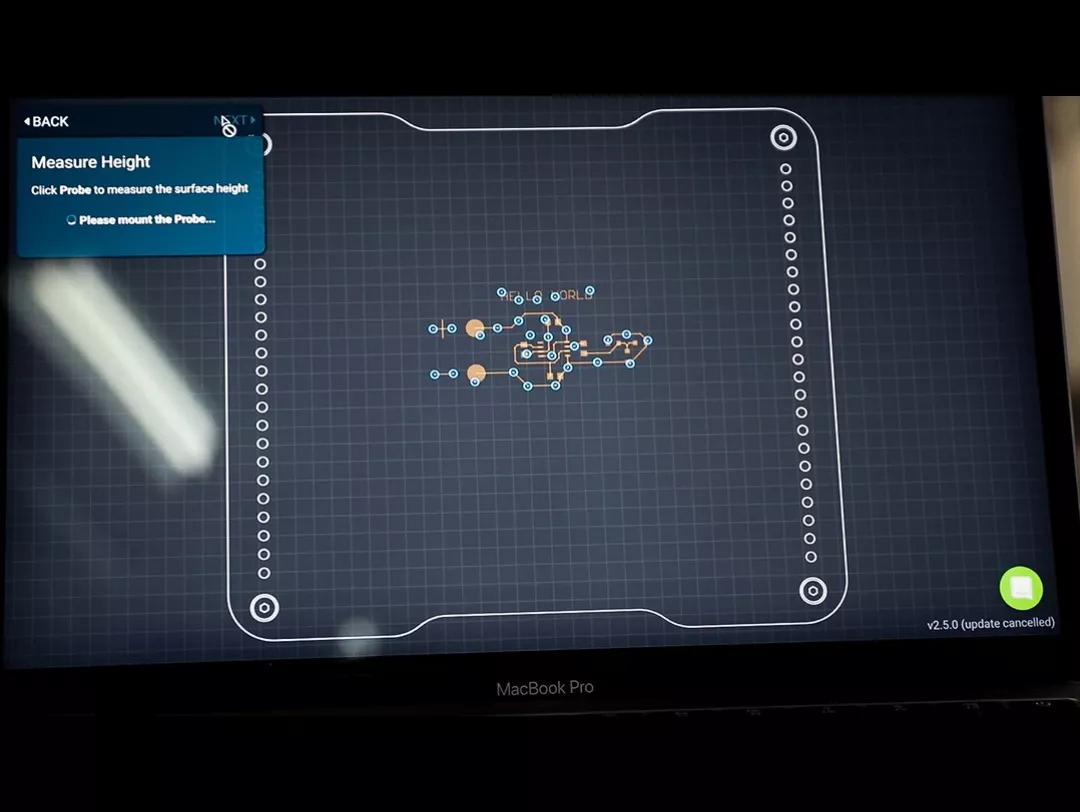

Software You Will Love
Voltera's software is designed to be understood. From importing Gerber files to pressing print, the software guides you through each step with built-in videos and tutorials. Compatible with EAGLE, Altium, KiCad, and more.
Anyone Can Use It
All attachments are magnetically mounted - no special tools needed. The dispenser gear rotates to control ink flow precisely. Print 8 mil (200 micron) traces with just a few clicks. The software guides you every step of the way.
A Perfect Print Every Time
High-precision probe creates a height map of your substrate. The V1 makes micro-adjustments to ensure constant 100-micron printing height. Works on rigid materials like FR4, glass, ceramics, and flexible substrates like Kapton.
Tech Specs of Voltera V1
Printing
| Minimum Trace Width | 0.2mm (8 mil) |
| Minimum Passive Size | 1005 |
| Minimum Pin-To-Pin Pitch | 0.65mm |
| Resistivity | 12mΩ/Sq @ 70um Height |
| Substrate Material | FR4 |
| Maximum Board Thickness | 3mm |
Soldering
| Print Area | 128mm × 105mm |
| Max Heated Bed Temperature | 240°C |
| Minimum Pin-To-Pin Pitch | 0.5mm |
| Solder Paste Alloy | Sn42/Bi57.6/Ag0.4 |
| Solder Wire Alloy | SnBiAg1 |
| Soldering Iron Temperature | 180-210°C |
Software
| Operating Systems | Windows 7, 8, 10 (64bit), macOS 10.11+ |
| Compatible File Format | Gerber |
| Connection Type | Wired USB |
Ready to Build Hardware Faster?
Contact us to learn how the Voltera V1 can transform your PCB prototyping workflow.
