Technical Specifications

Mercury Plus V3.0

Washing

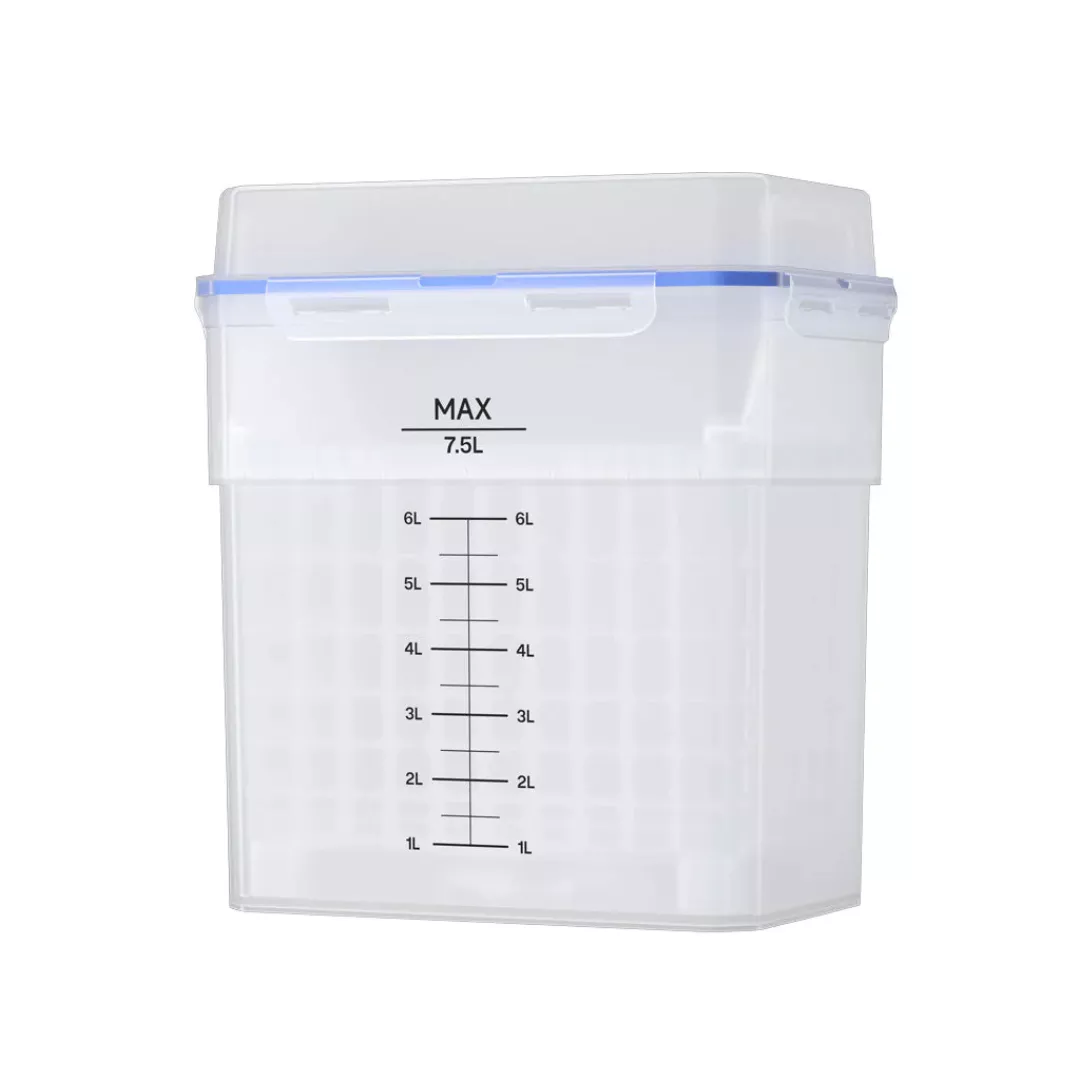

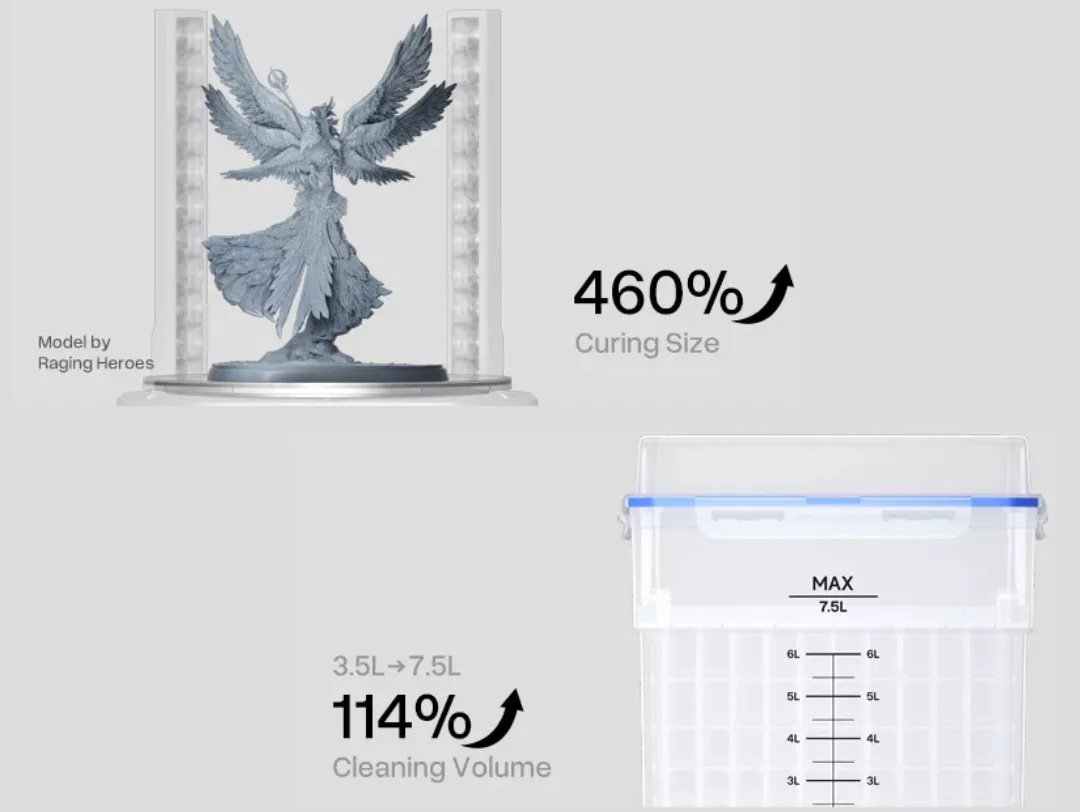

Tank Capacity7,500 mL (7.5 L)

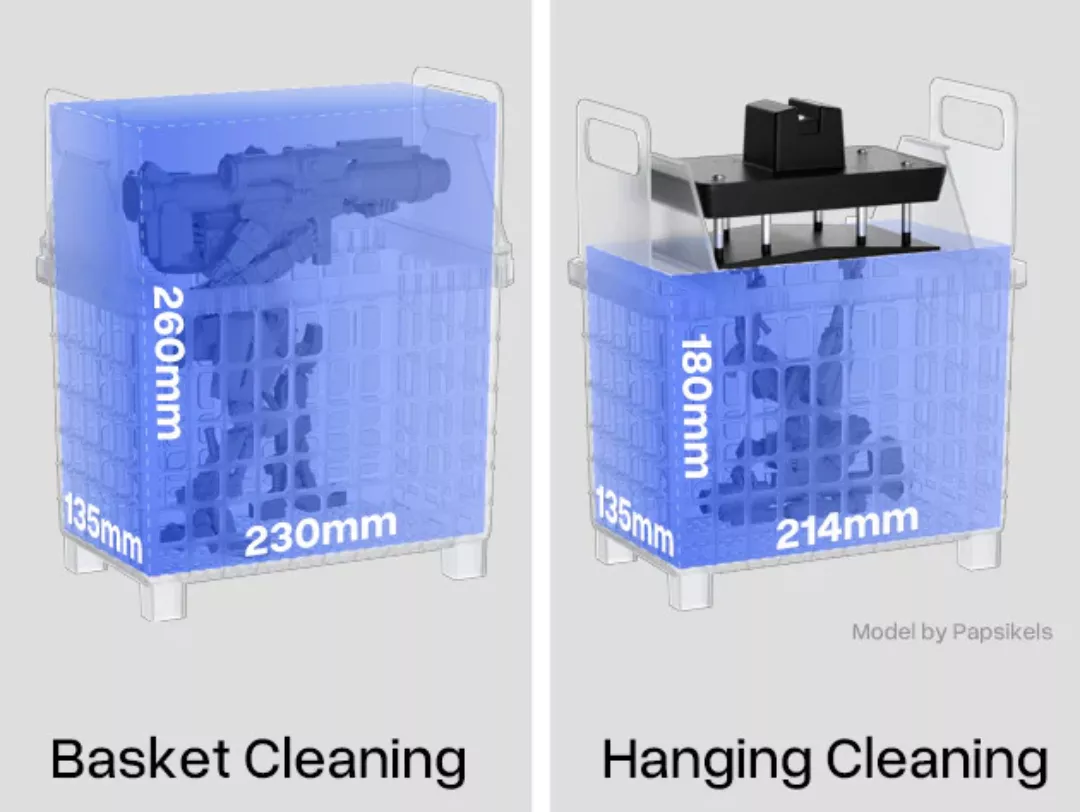

Basket Wash Volume230 × 135 × 260 mm

Hanging Wash Volume214 × 135 × 180 mm

Max Build PlateUp to 10 inches

Motor TypePOM (Polyoxymethylene)

Curing

UV Wavelength405 nm

UV LED Count24 LEDs

Max Cure SizeØ250 mm × 290 mm (H)

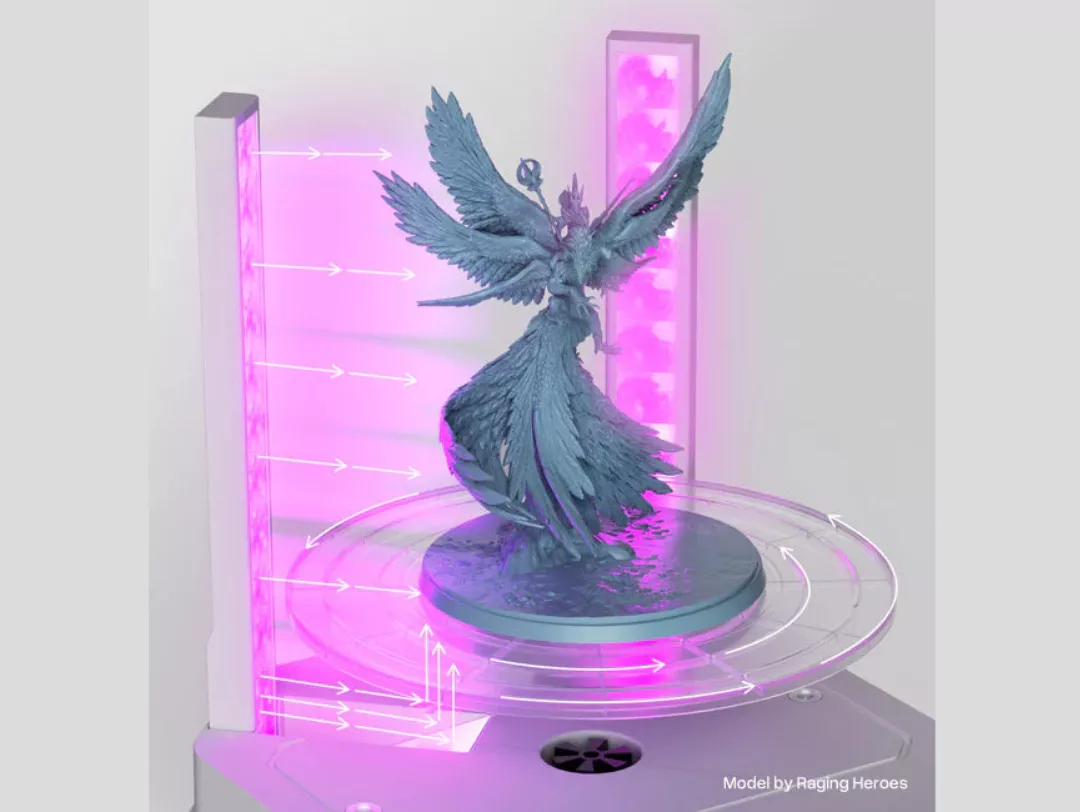

Curing Coverage360°

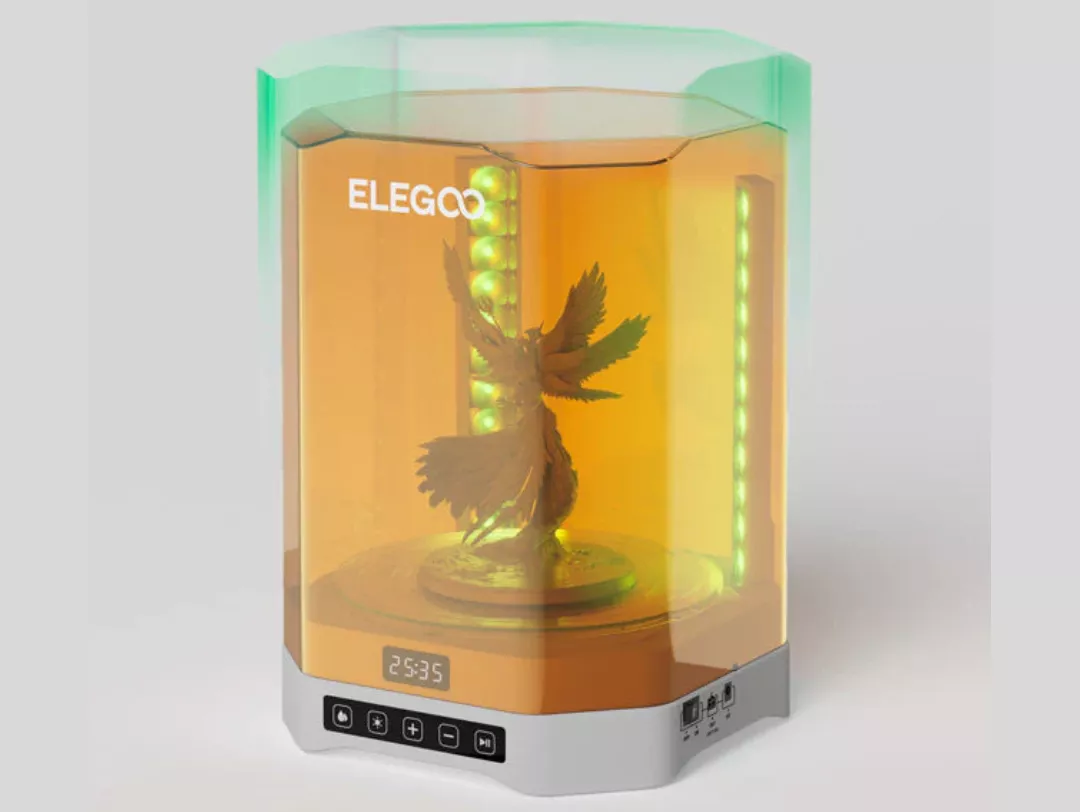

Safety CoverAnti-UV, blocks 99.9% UV

Controls

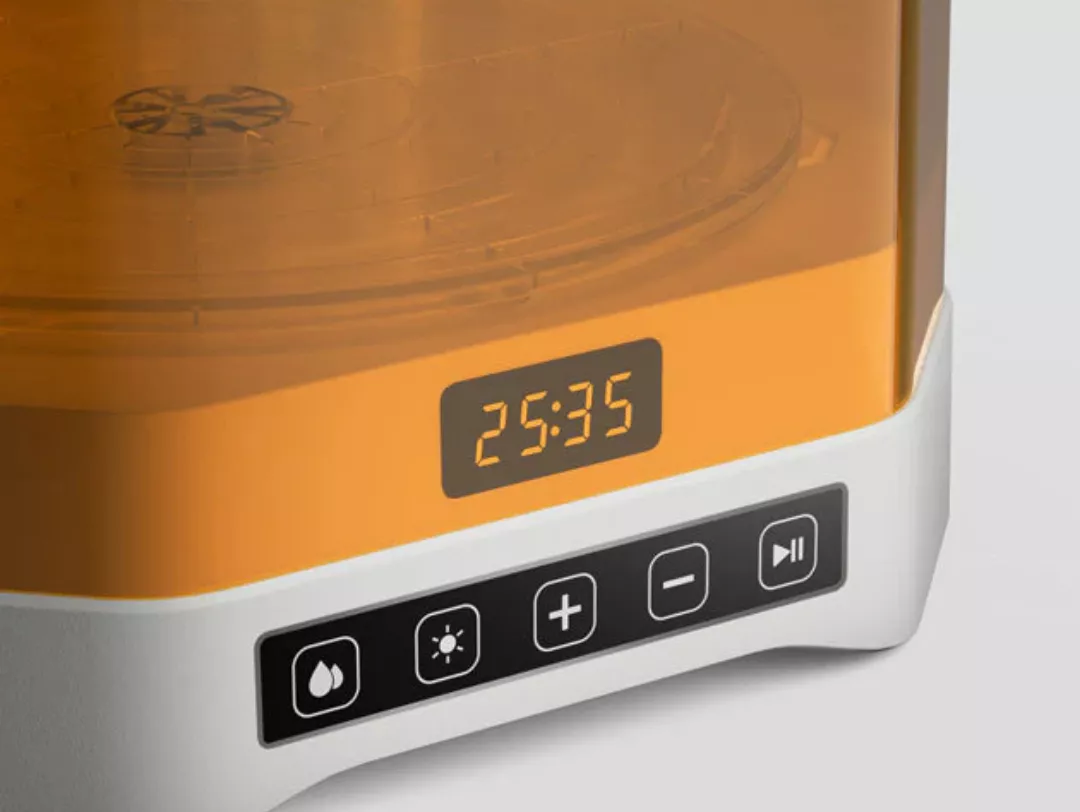

Control MethodTouch button panel

Max Timer30 min

Power

Power Input100–240 V, 50/60 Hz

Power Output24 V · 2.5 A

Dimensions

Machine Size
(L×W×H)302.5 × 302.5 × 412.5 mm

Package Size
(L×W×H)379 × 379 × 497 mm

Net Weight4.7 kg

Gross Weight6.3 kg

Compatibility

Supported PrintersMars, Saturn, Photon, Halot, MSLA, LCD, DLP

Warranty1 Year

About This Product

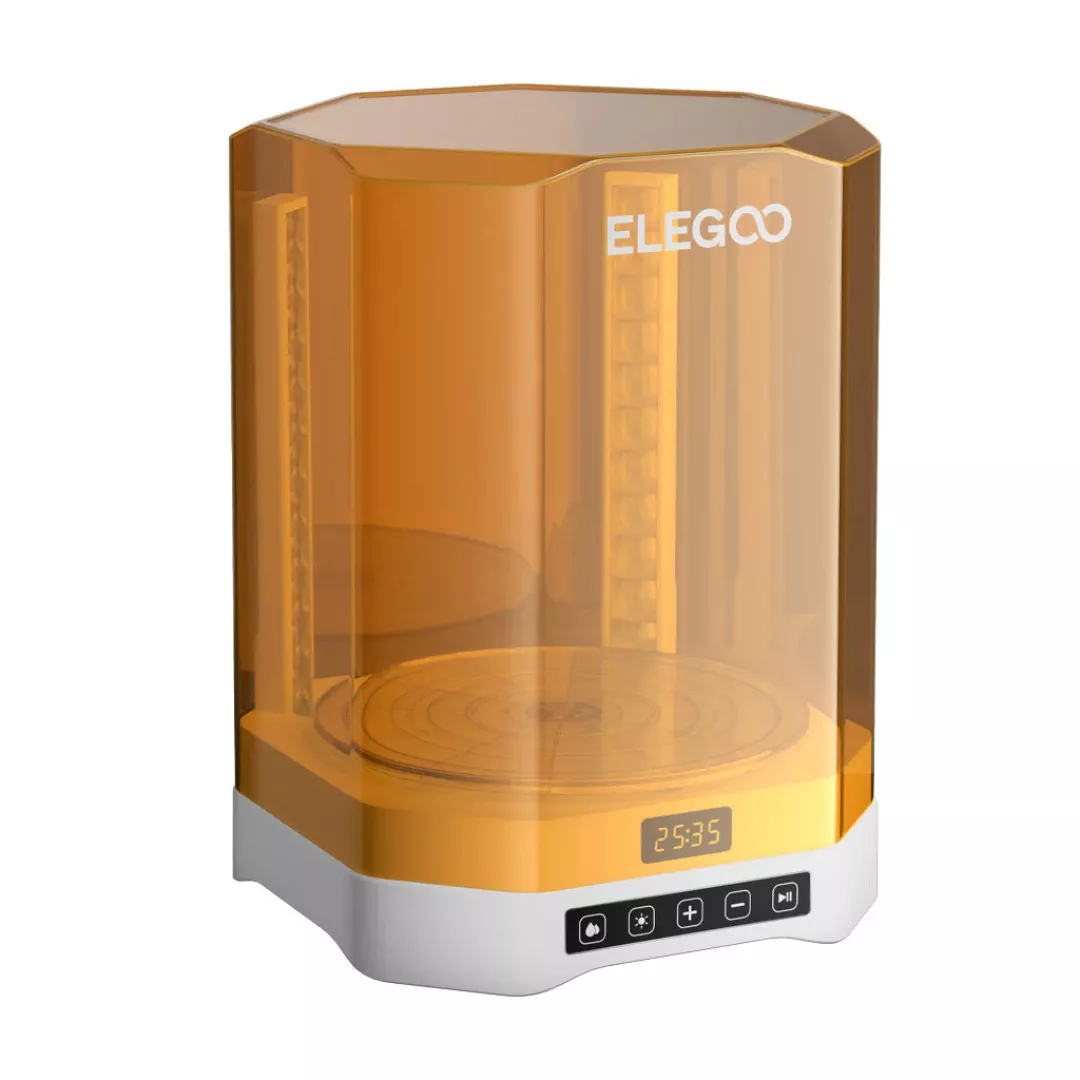

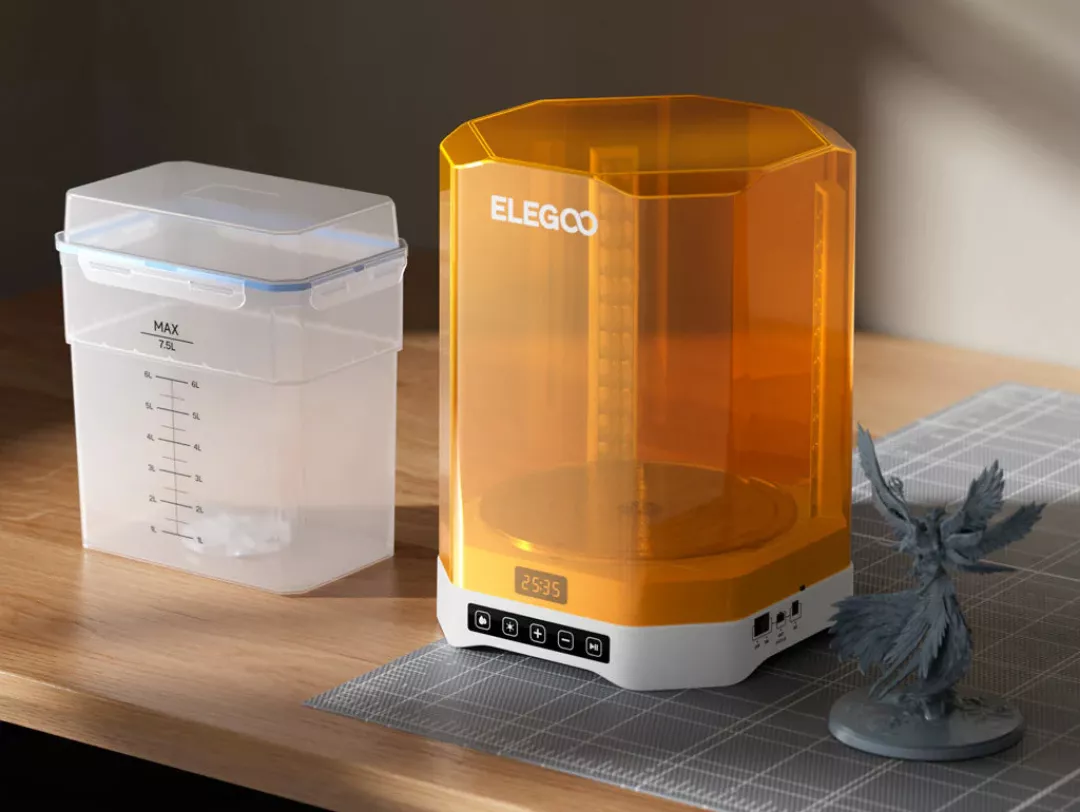

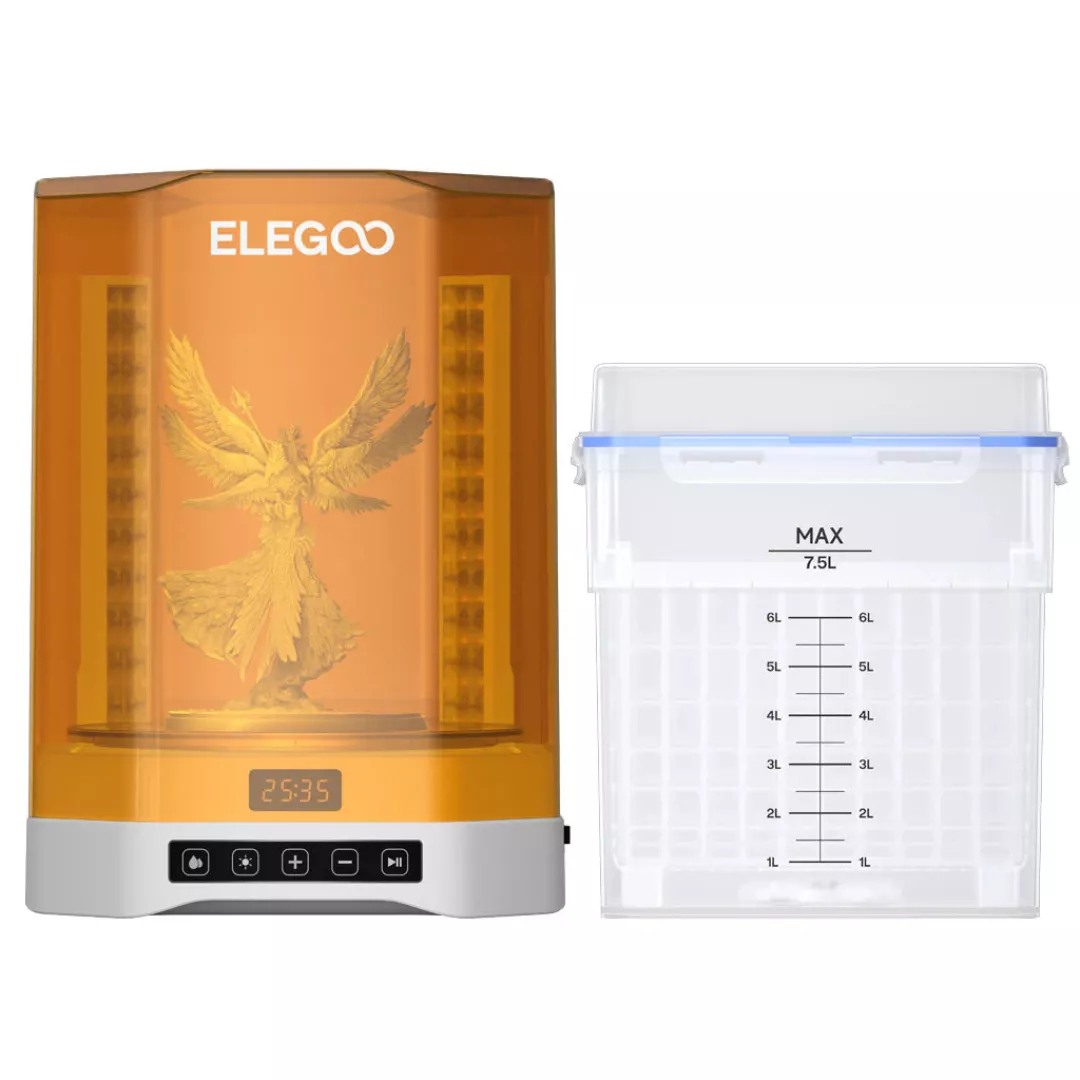

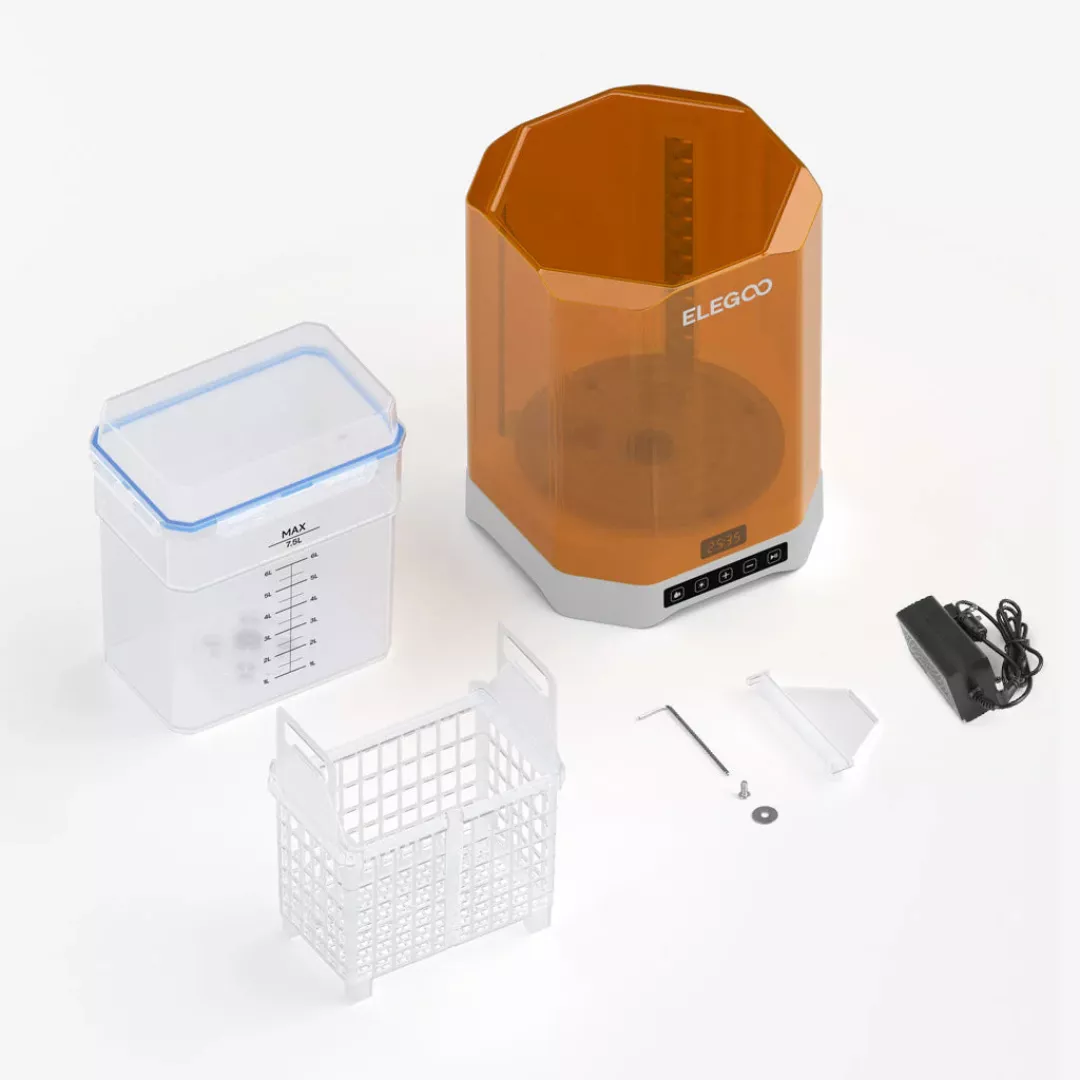

Discover the ELEGOO Mercury Plus V3.0 – an advanced washing and curing station designed for efficient post-processing of resin 3D prints. This 2-in-1 machine features a massive 7.5 L tank (114% larger than V2.0), accommodating prints up to 230×135×260 mm and build plates up to 10 inches. Its 24 high-power 405 nm UV LEDs combined with a 360° rotating turntable and Fresnel lens mirrors ensure complete, uniform curing from every angle — including the underside. The dual cleaning modes (basket and hanging) adapt to any print size, while the anti-UV safety cover blocks 99.9% of UV rays and a built-in micro-switch instantly stops the curing cycle when the lid is opened. Simple touch-panel controls with a 30-minute timer make professional post-processing effortless.
