Creality CR-Scan Otter
High-Precision Handheld 3D Scanner | Four-Eye Stereoscopic Vision | 0.02mm Accuracy
The Creality CR-Scan Otter is a next‑gen handheld scanner built for users who need both fine detail and flexible working distance. A dedicated depth‑computing chip and NIR structured light engine team up to deliver accuracy down to 0.02 mm. Its four‑eye stereoscopic vision system pairs a short‑focus binocular for capturing tiny features with a long‑focus binocular for larger parts and scenes. From product design and engineering inspection to cultural heritage capture and digital archiving, Otter adapts to a wide range of professional workflows.
Features Of CR-Scan Otter
High Accuracy from Small Parts to Large Objects
Otter captures rich surface detail with accuracy of up to 0.02 mm at 60 mm working distance, while its optical system handles everything from 10 × 10 × 10 mm components to areas as large as 1350 × 840 mm @ 1000 mm. This makes it suitable for tasks ranging from jewelry‑scale parts and mechanical components to full assemblies, fixtures, and sculpted forms.

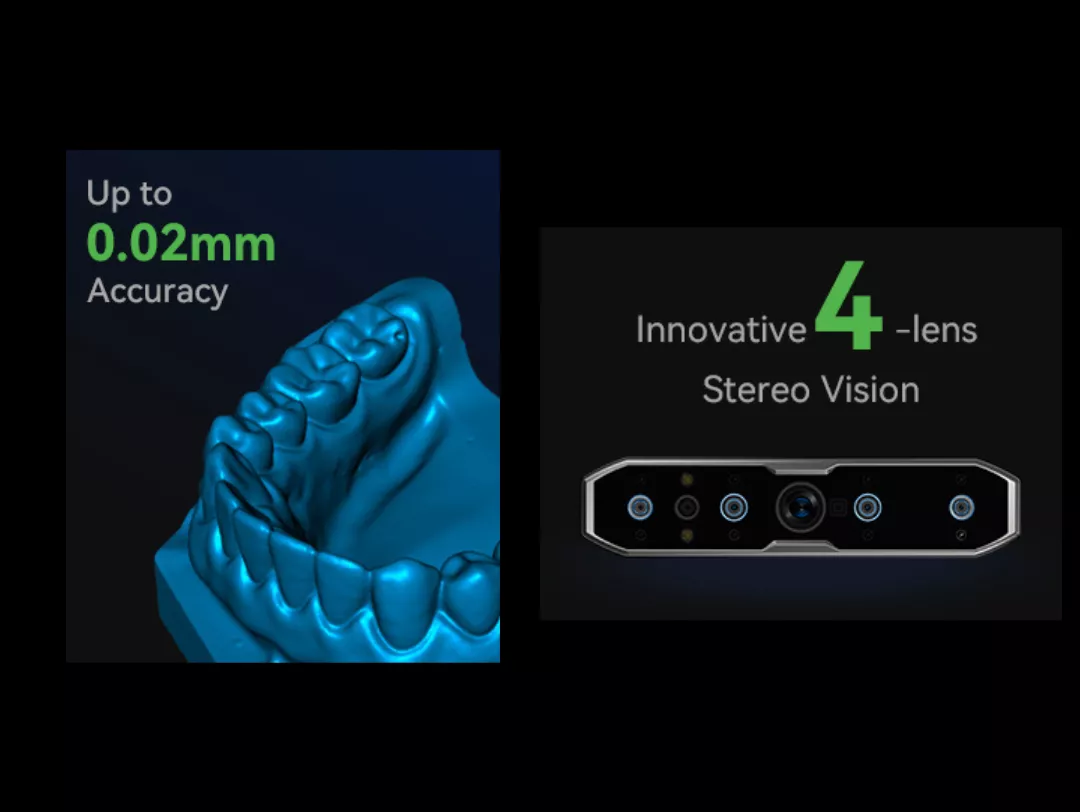

Four‑Eye Optics with NIR Structured Light

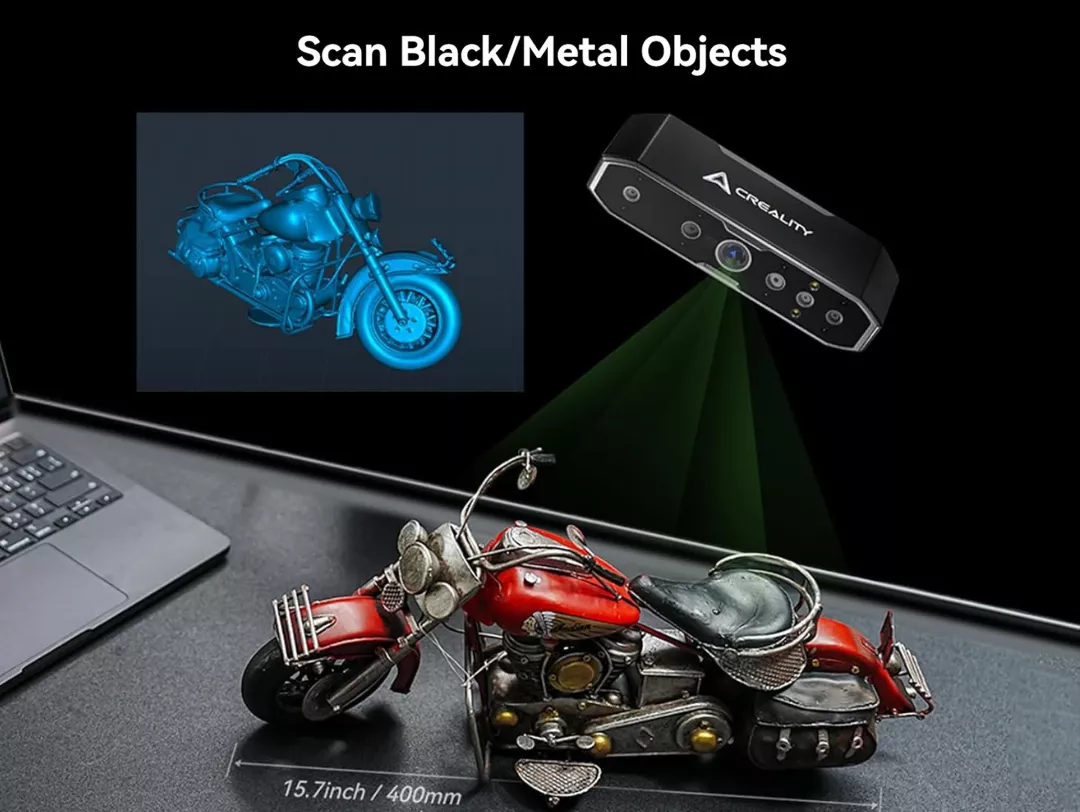

A four‑eye stereoscopic arrangement combines short and long focal‑length binoculars, so the scanner can lock onto fine features at close range while still tracking larger geometries at a distance. The NIR + DOE structured light projection and single‑frame 3D imaging help maintain stable tracking and accurate geometry, even on challenging surfaces with edges, curvature, or varying reflectivity.
Outdoor‑Ready with Vivid Color Capture
A carefully tuned optical path allows Otter to operate in lighting conditions up to 30,000 lux, so scanning on the shop floor, in brightly lit studios, or even outdoors is still reliable. Built‑in professional texture lighting supports full‑color scanning, producing realistic textures for visualization, digital content creation, and review workflows.

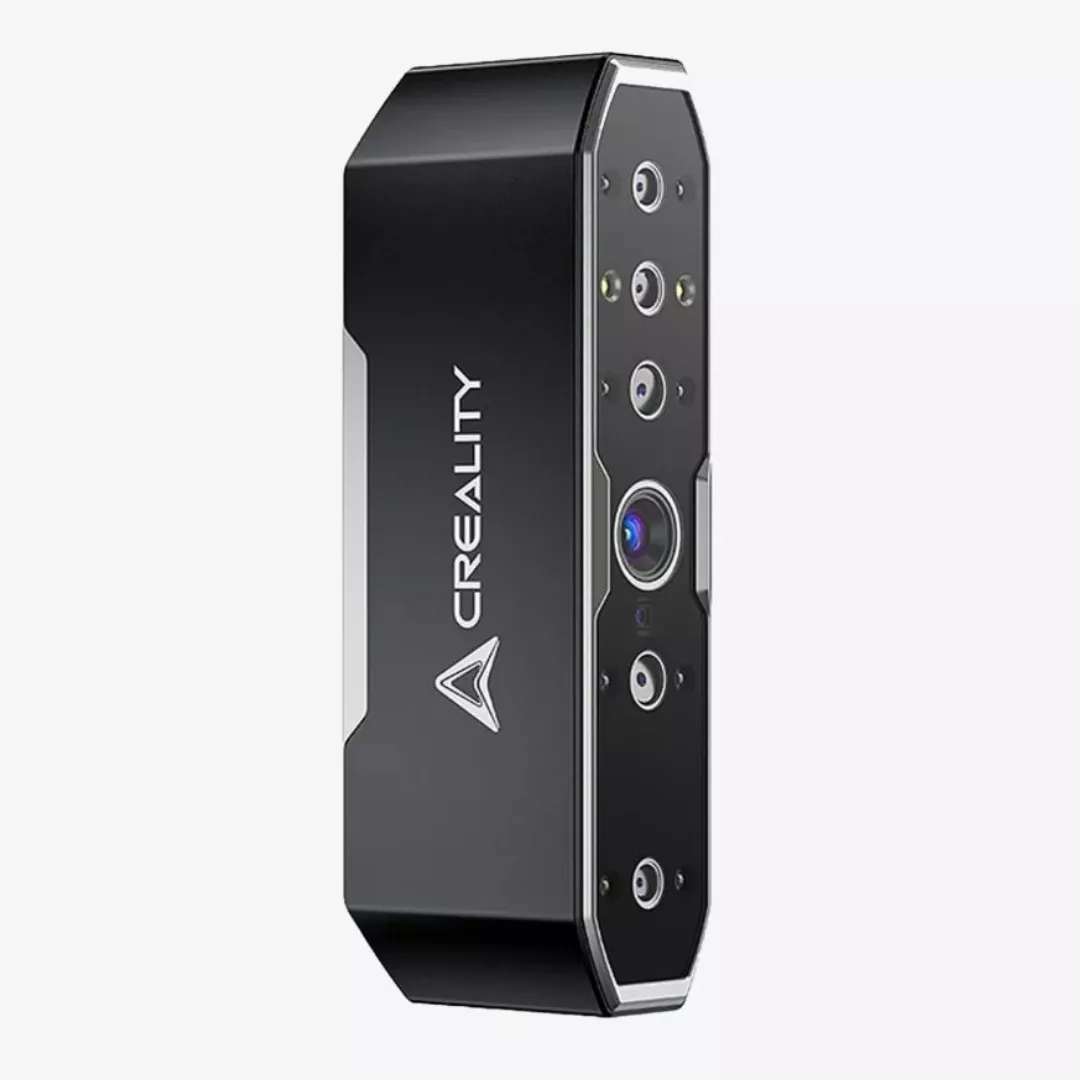

All‑Metal, Fanless Design for Quiet Scanning
Otter features an all‑metal chassis with a fanless thermal design, keeping the device solid and stable in hand while eliminating fan noise during scanning. The compact form factor (around 390 g) and balanced grip help reduce operator fatigue in longer sessions, whether you are capturing a single part or an entire series of objects.
Flexible Workflow & File Format Support

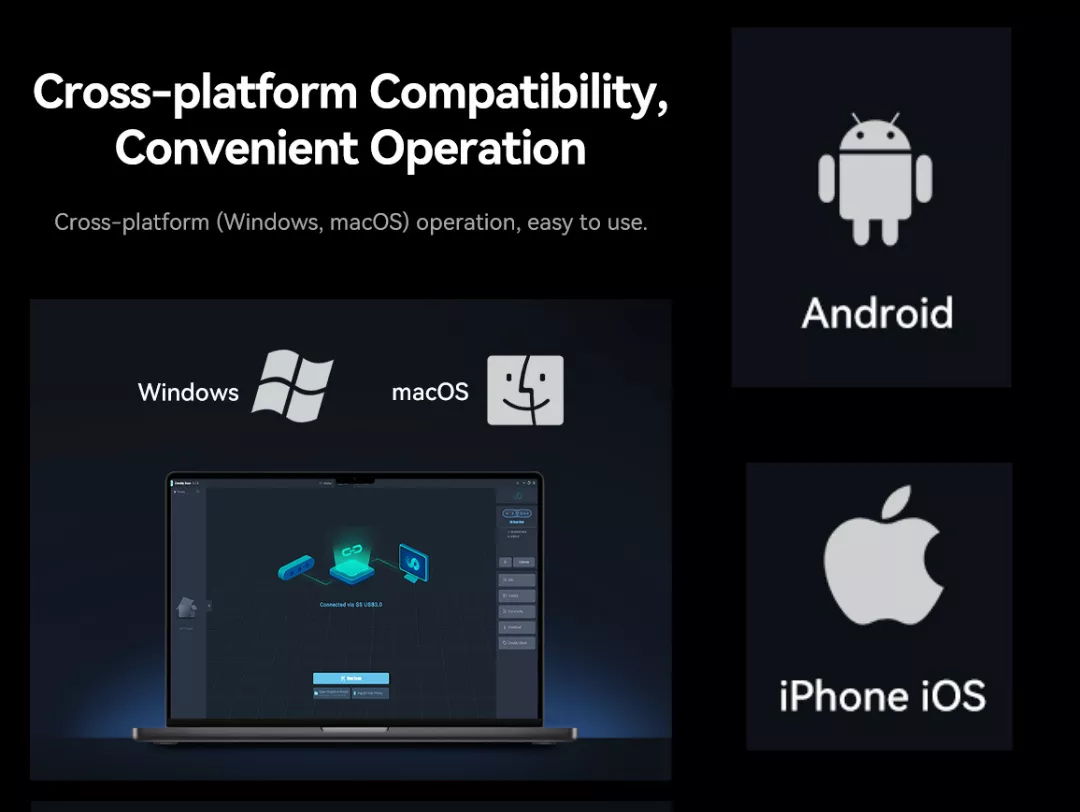

Scan data can be exported in common formats such as OBJ, STL, and PLY, making it easy to move models into CAD, DCC, inspection, or 3D printing software. With support for Windows and macOS systems, CR-Scan Otter slots into existing pipelines for reverse engineering, quality inspection, product visualization, and more.
Technical Specifications
Creality CR-Scan Otter
Scanning Performance
Scanning Range
Physical Specifications
Compatibility & Use Cases
Accuracy
0.02 mm
Scan Speed
20 FPS
Max Capture Range
1350 × 840 mm
Best For
Professional 3D Scanning
