Snapmaker J1 - J1s High Speed IDEX 3D Printer
Discontinued
3Ding no longer sells this product. This page stays up for reference.
Snapmaker J1 - J1s High Speed IDEX 3D Printer
₹1,73,999
₹1,73,999

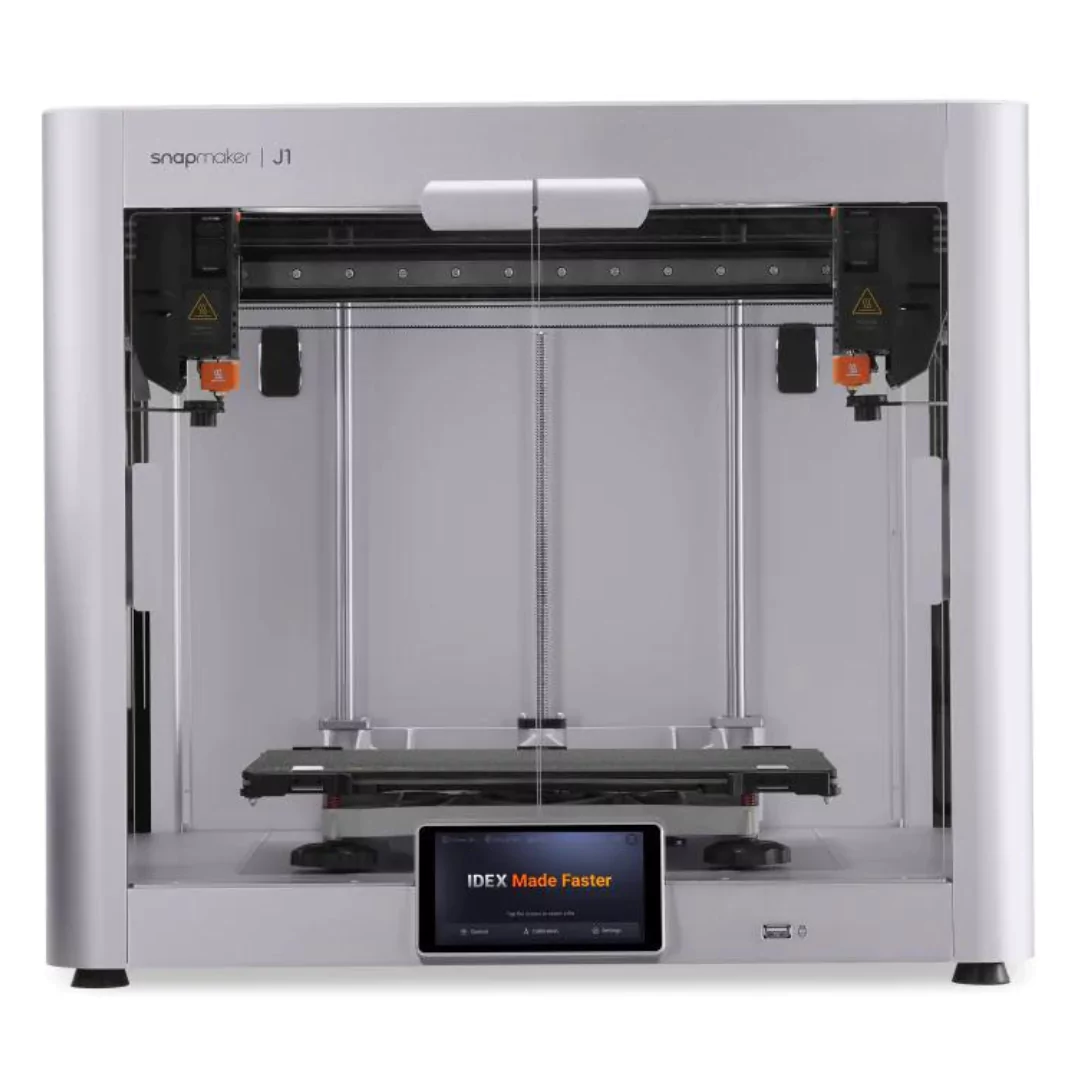

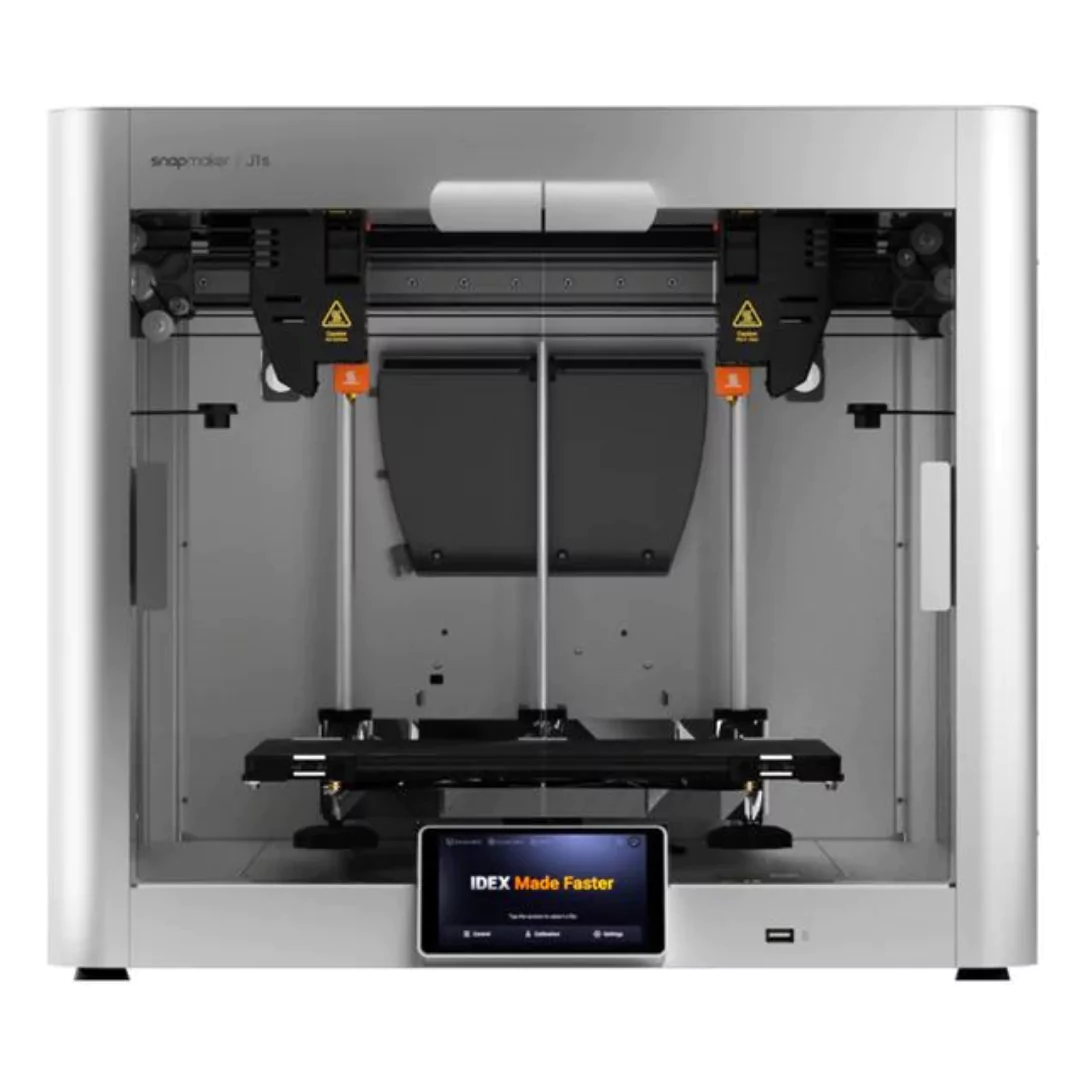

Snapmaker J1/J1s High Speed IDEX 3D Printer
Dual Extruder | Large Print Volume | Up to 350 mm/s
Experience the Snapmaker J1/J1s 3D Printer with independent dual extruder (IDEX), blazing-fast print speed, and advanced smoothing optimization. It features cast and machined parts, linear rails, intuitive software, and user-centered designs, ensuring a refined and solid printing experience. With up to 10,000 mm/s² acceleration and up to 350 mm/s printing speed, breakaway and dissolvable supports, Copy Mode and Mirror Mode for enhanced productivity, high-temperature capabilities up to 300°C, a generous 300×200×200mm print volume, easy-swap hot ends, double-sided PEI Glass Plate, 5-inch Intuitive Touchscreen, and built-in nozzle wiper, the Snapmaker J1/J1s has everything you need to embark on your maker journey.
Features Of Snapmaker J1/J1s High Speed IDEX 3D Printers
Fast and Forward
The Snapmaker J1/J1s is designed for maximum speed and efficiency, with a fast print speed of up to 350 mm/s and an impressive maximum acceleration of 10,000 mm/s². It allows you to bring your ideas to life quickly and effortlessly, delivering high-quality prints with exceptional precision and speed. With its Independent Dual Extruder (IDEX) system, the J1 enables simultaneous printing of multiple objects, reducing print time and boosting productivity.
Vibration Compensation
J1 offers you a top-of-the-line 350 mm/s printing speed while ensuring that prints are of a high resolution. This technology lessens ringing to improve print quality by reducing vibrations brought on by fast movements. With a maximum acceleration of 10,000 mm/s², you can effectively realise small models that are densely detailed.
Industrial-Grade Linear Rails
The precision CNC grinding used to create the industrial-grade linear rails results in movements that are steady and slick. In order for you to enjoy a quick, precise, and steady making experience, there has been a significant increase in precision, rigidity, and durability. Repeatability (X/Y): 0.03 mm; (Z): 0.02 mm. Expected Lifetime of More Than 10 Years.
One-Piece Die Casting
Four aluminium alloy bars, an upper frame, and a base made of one-piece die casting make up J1's body. Precision assembly is made possible by creating the body from a small number of highly integrated parts, a strategy long used by the automotive industry. J1 is so rigid and dependable with the least amount of wobble and deformation possible that you can print large projects repeatedly without compromising quality.
Dual-Material Printing with IDEX
IDEX dual-material printing uses less time to change filament and produces less waste than a multi-material unit. Additionally, IDEX provides the most hygienic two-extruder solution to avoid cross-contamination. By embracing hassle-free removal and preventing stains and odd blending along the seam, it creates a clean interface between two materials.
Breakaway & Dissolvable Supports
Consistent support, a clean interface, easy removal, and minimal post-processing required to maintain high dimensional accuracy. Breakaway support for flexible materials and dissolvable support with PVA/HIPS for complex geometries.
Print in Copy Mode
Reduce your wait time by half and increase your productivity by a factor of two. Print two identical objects at the same time. It's ideal for batch printing, empowering studios and enthusiasts. If one of the prints encounters a problem, you can halt it without affecting the other.
Print in Mirror Mode
J1 directly mirrors your model and prints both the original and the mirrored version at the same time. Import half of a symmetrical model and print it in Mirror Mode to cut your wait time in half, ideal for quick draughts and concept models.
300°C Hot Ends
When printing with high-temperature filaments like nylon, reinforced nylon, and PC, a nozzle with a maximum temperature of 300°C is useful. It takes much less time for filaments to melt and heat up when silicone hot end socks are used to keep heat in. Anti-clogging designs ensure the smoothest possible flow.
Dual Direct Drive
Flexible filaments can be extruded with ease thanks to the excellent extrusion accuracy. Dual direct drives' high responsiveness also helps to control deposition more precisely and quickly. A built-in filament sensor will alert you and pause the print job in the event of filament runout or nozzle clogging.
Enclosed Space
It offers stable environmental conditions that help high-temperature materials perform consistently reliably. For instance, it prevents warping in ABS and many other materials.
5-inch Intuitive Touchscreen
With clear instructions, file previews, and plenty of information, your personal guide through setup and skilled assistant in making will take care of all your questions and needs. Features 4 printing modes, dual-extruder configuration, and live display of working status.
Technical Specifications
Snapmaker J1/J1s High Speed IDEX
Extruder System
Performance
Build Volume
Printing Modes
Materials
System
Physical
Power
Max Speed
350 mm/s
Acceleration
10,000 mm/s²
Build Volume
300×200×200mm
Best For
Dual Material
